Designed around you. Built for your needs.

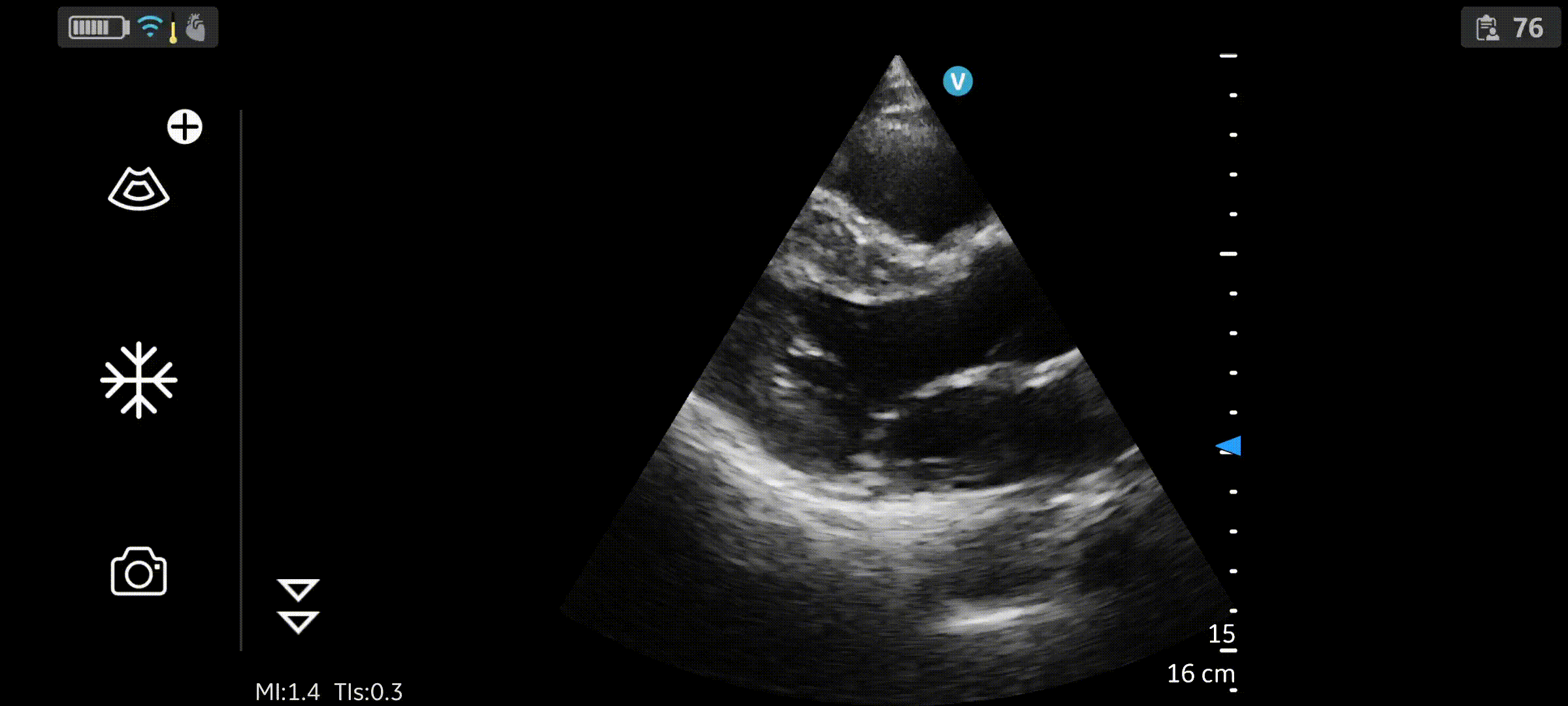

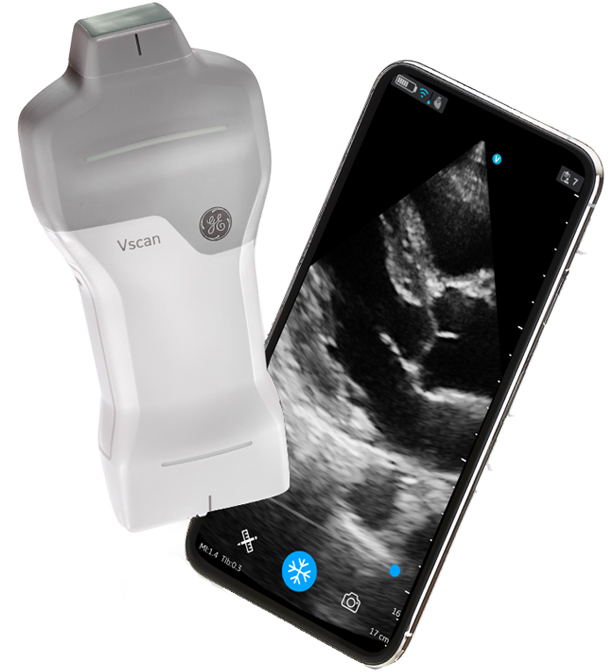

Take Vscan Air SL anywhere* with wireless freedom and maximum portability. Its sector transducer is ideal for focused cardiac assessments. With Vscan Air SL handheld ultrasound, the opposite side of the probe has a linear array, so that you won’t miss a beat when moving from a cardiac to a vascular assessment. No need to go looking for your ultrasound — it’s right in your pocket.

Human-focused design helps keep things simple with one-swipe/tap controls, simple user interface and intuitive design.

Flexible wireless experience includes wireless device connectivity and data sharing to your DICOM® Network server or shared folders. Seamlessly send your image queue during the exam or once connected to your network.

Easily share anonymous ultrasound exam images or loops to other apps, including your social feed, with just a few taps in the Vscan Air app.

Seamlessly monitors electronics and transducer elements to ensure the device is fully operational even after a drop.

Start scanning faster with smart connect pairing, which keeps your probe connected to your display device while charging.

OB measurements and worksheet include capabilities for fetal size measurements, amniotic fluid check, angle of progression and estimated fetal weight.

World-class cyber security includes auto-delete of images after export, to protect patient information and two-point encryption to keep your data secure.

Intuitive measurement tools to get the quick measurements you need at the point of care — wherever that may be.

Streamline your workflow by annotating images right on your display device.

* The device has been verified for limited use outside of professional healthcare facilities. Use is restricted to environmental properties described in the user manual.

Vscan Air SL Specs

Vscan Air SL is waterproof, military standard drop-tested, flight-ready, ambulance capable and backed by a three-year warranty.

Imaging modes

• B-mode

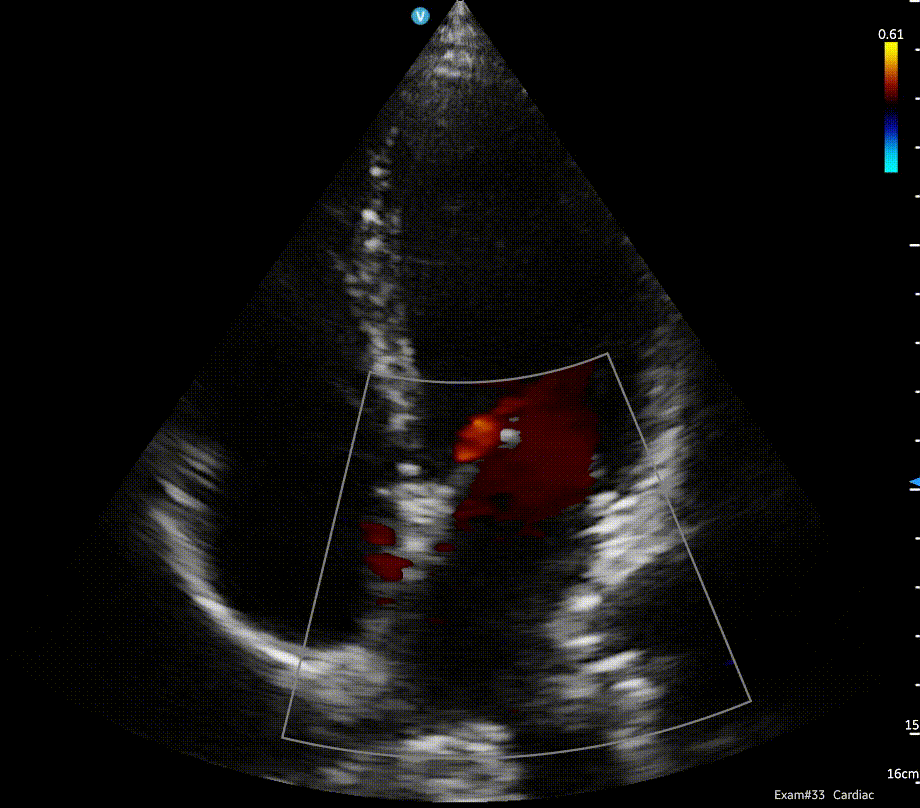

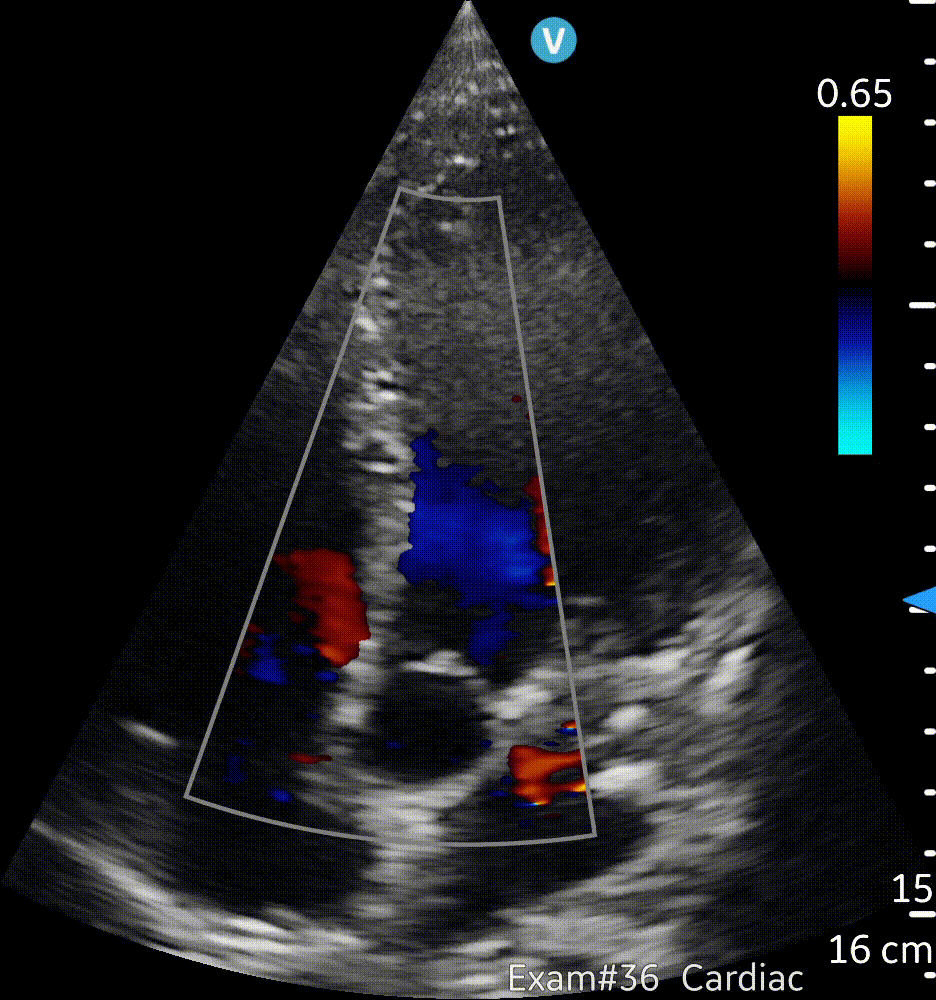

• Color Doppler

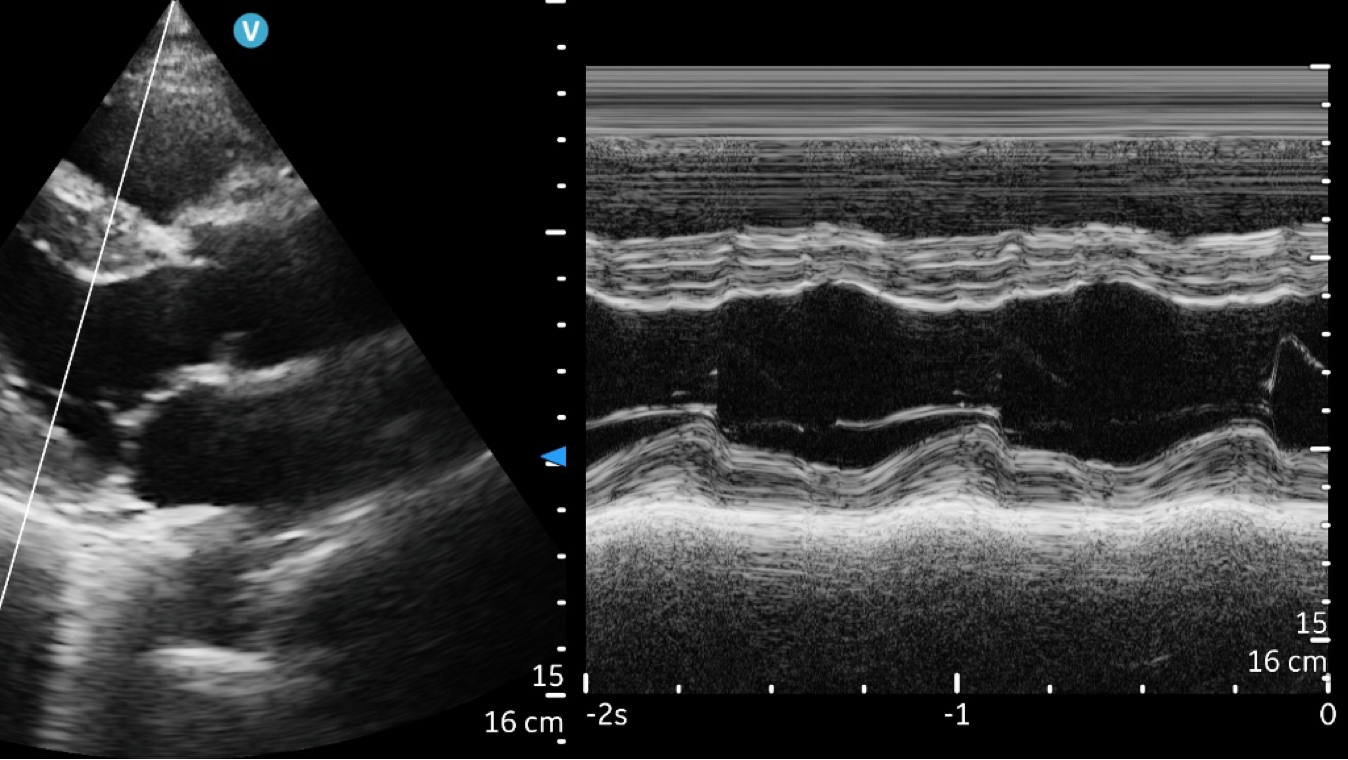

• M-mode

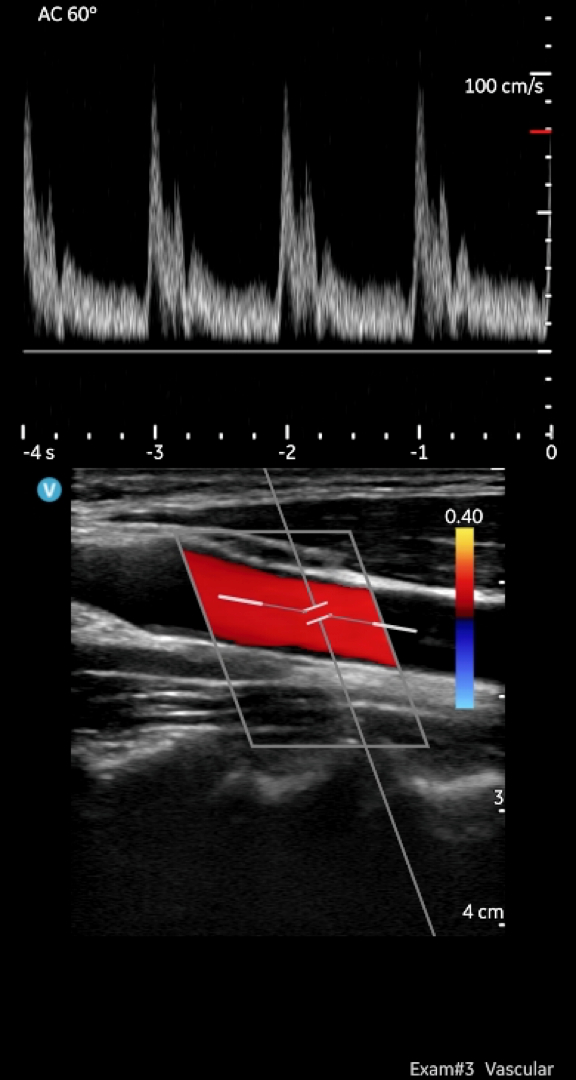

• Pulsed Wave Doppler

TWO TRANSDUCERS IN ONE PROBE:

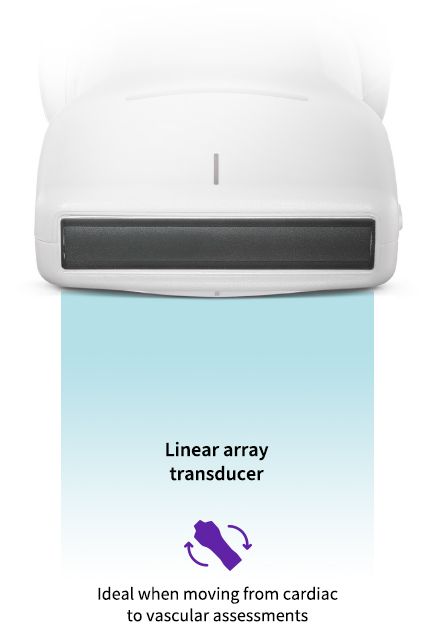

Linear transducer for shallow scanning

•Frequency: 3 – 12 MHz

• Maximum depth: 8 cm

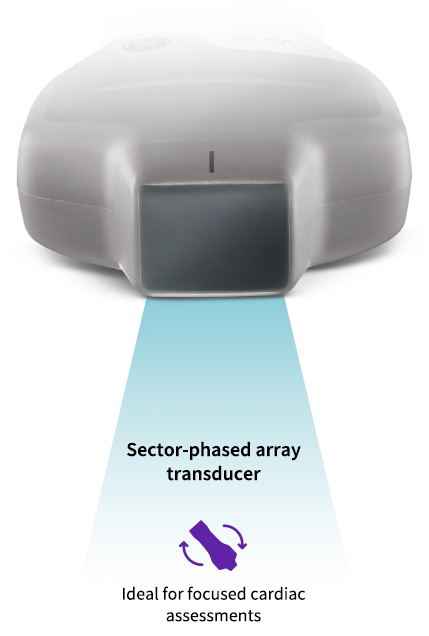

Sector array transducer for deep scanning

• Frequency: 1.6 – 3.7 MHz

• Maximum depth: 24 cm

Battery life

• Scan time: up to 50 minutes

• Recharge time: 75 minutes (from 10% to 90%)

• Use supplied wireless charger or any Qi-certified charger

• Smart connect pairing: probe stays connected to your display device while charging

Customizable probe button

• Freeze or store

Durability

•

Tested to military drop standards (MIL-810G)¹

•

IP67 rated waterproof¹

•Compatible with high-level disinfection techniques

• Withstands temperature extremes

Portability

• Weight: 218 +/- 3 grams

•

Mobile App enabled on Apple^® and Android^™ devices

• Probe is completely cordless

• Wireless data connectivity

Supported mobile platforms

•

Connects to your own mobile device.

•

Optimized to work with a range of Android and Apple iOS smart phones and tablets.

• Supports portrait and landscape orientations to optimize image size and ergonomics for different use scenarios.

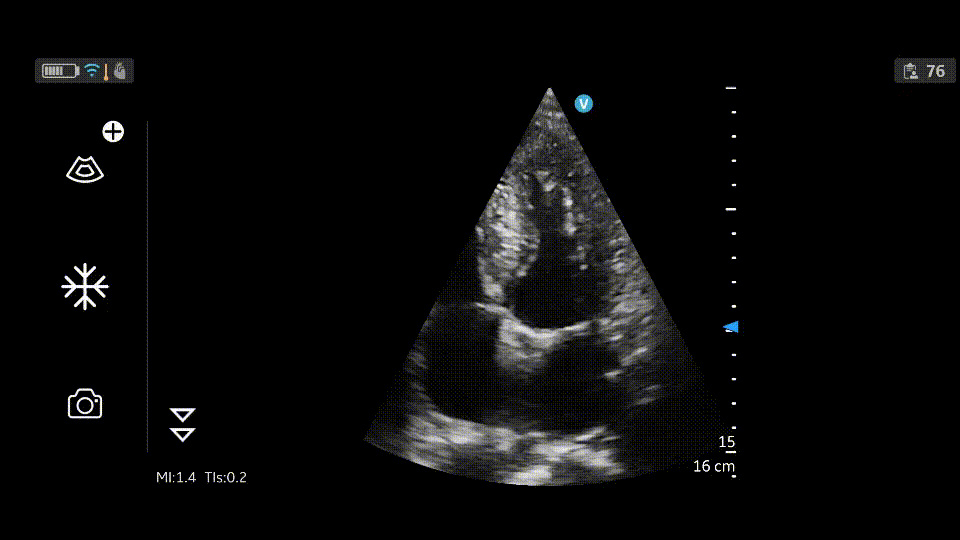

Intuitive user interface

•

Simplified user interface with intuitive thumb-controlled touchscreen.

•

Single key/gesture to control freeze/unfreeze, store, color on/off, gain and depth control.

• Customizable probe button (Freeze/Store).

• Easily accessible presets – available without scrolling.

• User-selectable default preset.

User support

•

Support tools accessible from app, including user manual and links to online educational materials.

Data privacy and security at the forefront

Securely store, share and collaborate seamlessly. Vscan Air offers a high level of security.

• DICOM®, including query from Modality Worklist server, export to DICOM PACS, receive storage commitment

• JPG/MP4 exports to shared network folders (supports importing into EMR)

• Share auto-anonymized images with other apps

• No cloud required

• Secure DICOM including the option of peer authentication

• Secure user authentication

• Enable security PIN to access patient data

1 Vscan Air probe withstand drops: tested to Military drop standards (MIL-810G). IP67 waterproof, compatible with high level disinfection techniques

An always-with-you solution for focused cardiac and vascular assessments

The Vscan Air SL dual-probe can easily be incorporated into your daily practice. It’s in your pocket so you’re ready for point-of-care assessments, including LV function assessments, procedures, quick triage exams, rounds in the ICU, and more. The right tools in-hand can help get you to the answers you need right away and get patients to the right next steps faster.

Vscan Air SL supports key cardiovascular and other exam types, to evaluate for:

Dilation

Left ventricular hypertrophy

LV and RV size and function

Pericardial fluid

Pulmonary congestion

Systolic and diastolic function

Ultrasound-guided arterial catheterization

Valve function

Valve regurgitations/stenosis

Volume size and responsiveness/IVC size respiratory variation

Volume status and fluid responsiveness

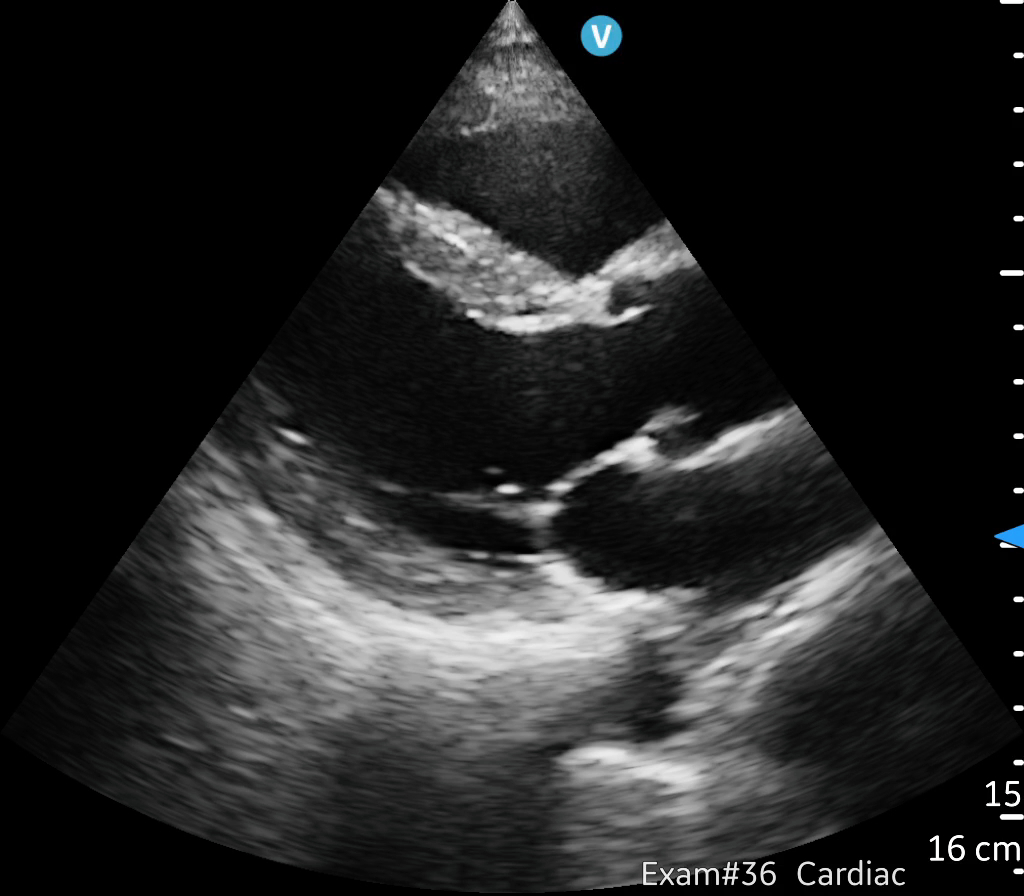

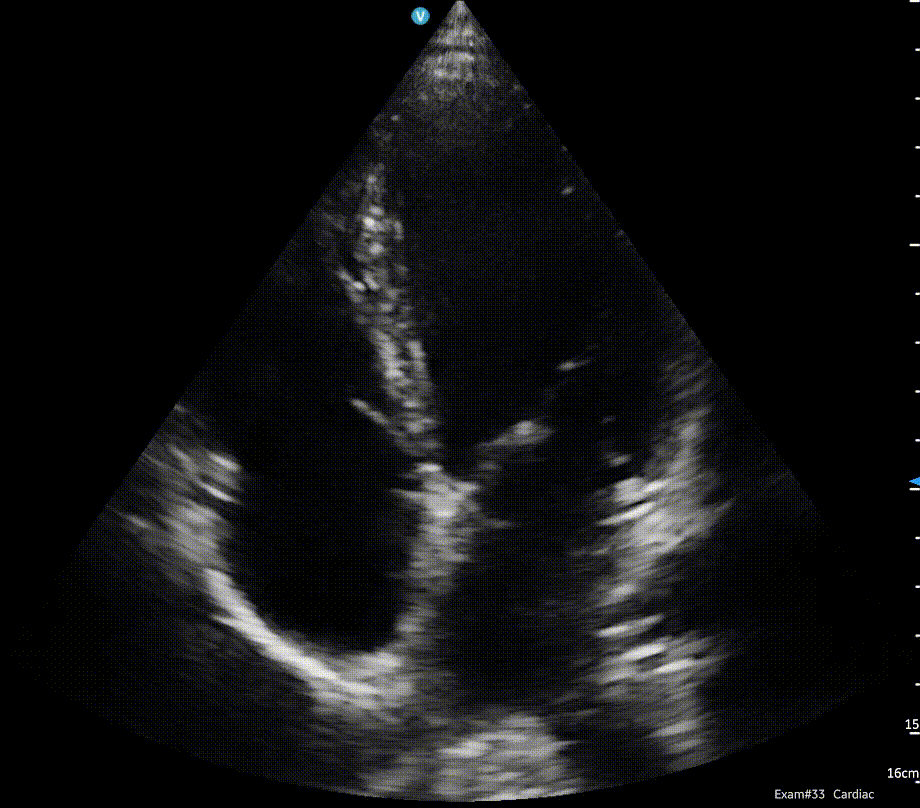

Quality images at the heart of patient care

Our proprietary SignalMax™ + XDclear™ technology sets a new standard in handheld cardiac ultrasound by miniaturizing the power of XDclear to deliver extraordinary image quality with our sector-phased array transducer. The Vscan Air SL combines the power of SignalMax high-intensity signal processing with industry-leading single crystal transducer technology for the exceptional penetration, resolution, and sensitivity you need for matters of the heart.
